Denso
Hilux +30 Injectors - 1KD - 13 Code - Upgraded
Hilux +30 Injectors - 1KD - 13 Code - Upgraded
Couldn't load pickup availability
Diesel · Verified Genuine · Bench Tested
Genuine Denso 13-code bodies, MCR nozzles — hand-built, bench-tested and coded. A matched set of four that finish together.

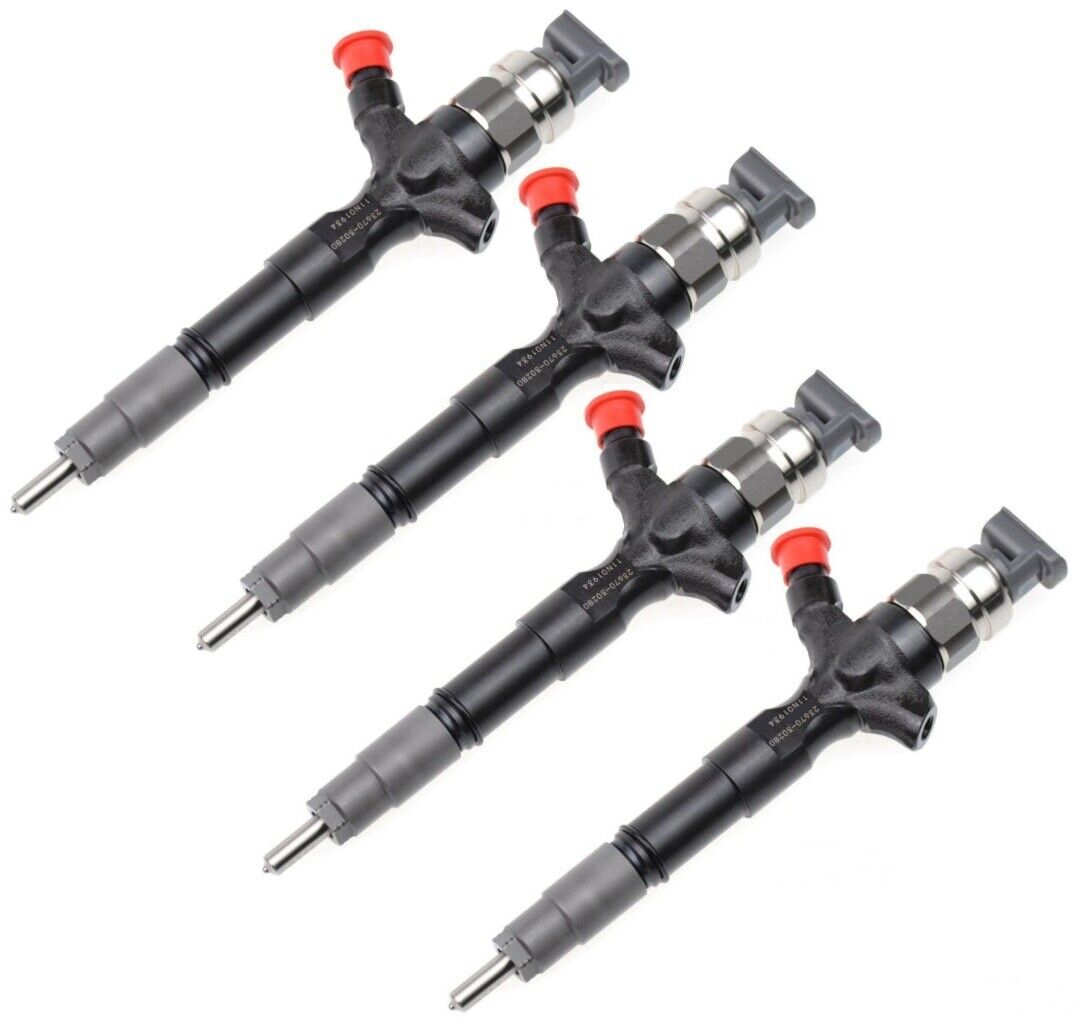

Modified Genuine Denso 13 Code High-Flow Injectors — Hilux 1KD-FTV Euro 4
A matched foursome of Genuine Denso 13 code injectors upgraded to +30%, +50% or +100%. Every set is built, worked over on the bench, flow matched and sent out with its own individual compensation codes — generated from the measured results of that exact set, not copied off a box. Genuine Denso bodies, MCR upgraded nozzles. ECU remap required to keep them honest.
Bench Tested, Matched & Individually Coded — By Hand
These aren't random oversized units with generic codes slapped on the box. Every set is hand-built and personally worked over on our Hartridge Sabre CRi Expert before it's allowed to leave.
Built
Genuine Denso bodies fitted with MCR performance nozzles.
Tested
Measured across multiple controlled points for delivery and return flow.
Matched
Grouped as a set so they all behave the same.
Coded
Each injector gets its own 13 code based on real bench data.
Delivery and return flow are measured across multiple test points covering low load, part load and high load. That data calculates each injector's individual 13 code compensation code, recorded against its serial number — so you load the right code into the ECU for each cylinder before it goes in.
You're buying a tested, matched and coded set. Not a random mix with copied or generic codes.
How Much Can You Handle? — Sizing Guide
+30%
Best for: Tuned daily drivers, towing setups, stock turbos and 44mm turbo upgrades.
Fuel pump: Happy with a standard pump when paired with a suitable tune.
+50%
Best for: 44mm and larger turbo setups chasing more torque and power.
Fuel pump: Upgraded pump recommended. Can still run a standard pump where the tune and fuel demand allow.
+100%
Best for: Big turbo, built engine and serious fuel-system builds only.
Fuel pump: An upgraded or stroker pump is required to feed this much flow.
All options are bench tested, flow matched and supplied with individual 13 code compensation codes.
🔧 Vehicle Compatibility
- Toyota Hilux N70 KUN26 — 1KD-FTV 3.0L. Approx late 2006 to mid 2009. Euro 4. 13 code.
Part numbers: Denso 095000-7780 / 195000-1160 · Toyota 23670-30280
13 code injectors are not compatible with 11 code or 18 code ECUs. Drop your VIN or Rego + State in the cart notes and we'll double-check factory fitment before it goes anywhere near your engine.
📦 What's Included
- 4 × modified Genuine Denso 13 code injectors with MCR performance nozzles, in your selected flow profile
- Individual 13 code compensation code for every injector
- Codes recorded against the matching injector serial number
Fitting kit and injector lines sold separately — see below.
🧰 What You'll Want on Hand
Don't go in half-prepared. Sort the supporting bits before install day:
- Genuine Toyota Injector Fitting Kit — copper seat washers, seals and gaskets. Do it properly.
- Genuine Toyota Euro 4 Injector Lines — new crush-fit lines for a proper seal. Reusing old ones is asking for a messy leak.
- Aluminium Rocker Cover — optional alloy upgrade while you're already in there.
💡 Pro tip: Always replace copper seat washers and injector lines when fitting new injectors. Cleanliness is everything with common rail.
🔁 Also Available As
- Standard 13 Code Injectors — OEM-spec for stock Hilux applications, no tune required. Available as a separate listing.
🚚 Shipping & Payment
- 📦 Same-Day Dispatch* — order before cut-off and it ships that business day
- 🚚 Free Express Shipping Australia-Wide — full tracking, plain packaging, no one has to know
- 🇦🇺 All major cards accepted
*Orders placed before 2 pm AEST on business days, subject to stock.
⚠ Modified Injector Disclaimer
Where a modified or oversized injector is sold as Genuine — including Denso — the term Genuine refers only to the injector body. It does not refer to the nozzle.
The body stays genuine. The nozzle and overall flow characteristics differ from original OEM spec. That's the whole point.
🪪 VIN & Compatibility Disclaimer
When you provide your VIN or rego, we'll confirm the injector type your Hilux left the factory with. This may not be correct if the injectors, harness or ECU have previously been changed.
It is the customer's responsibility to verify injector compatibility before installation.
❓ Frequently Asked Questions
Q: Do I need a tune?
A: Yes. An ECU remap is essential for every upgraded profile — +30%, +50% and +100%. The tune calibrates fuelling, rail pressure and injection timing to match the extra flow. Go in without one and you'll just make a mess.
Q: Can I run +30% on a stock turbo?
A: Yes — +30% works on the factory turbo with a tune. +50% and +100% want an upgraded turbo and supporting mods to keep up.
Q: Will these work with the factory HP3 pump?
A: +30% typically works with a healthy stock pump. +50% and +100% usually want a higher-output or stroker pump to feed the demand.
Q: Do they come with compensation codes?
A: Yes. Every injector gets its own individual 13 code generated from measured bench data, recorded against the serial number so it goes to the right cylinder.
Q: Are the bodies genuine Denso?
A: Yes — Genuine Denso 13 code bodies with MCR upgraded performance nozzles. See the Modified Injector Disclaimer for the full story.
Genuine Denso Bodies · MCR Nozzles · +30% / +50% / +100% Flow
Hand-built, bench-tested on a Hartridge Sabre CRi Expert, flow matched and individually coded. ECU tune required. Free discreet express shipping AU.
Disclaimer: Injector Hub is a work of satire and is not affiliated with Toyota Motor Corporation, Denso Corporation, MCR, or any adult entertainment platform, real or imagined. All injectors depicted are matched, consenting and over the age of 18 seconds since manufacture. Professional installation and tuning required. Please inject responsibly.
